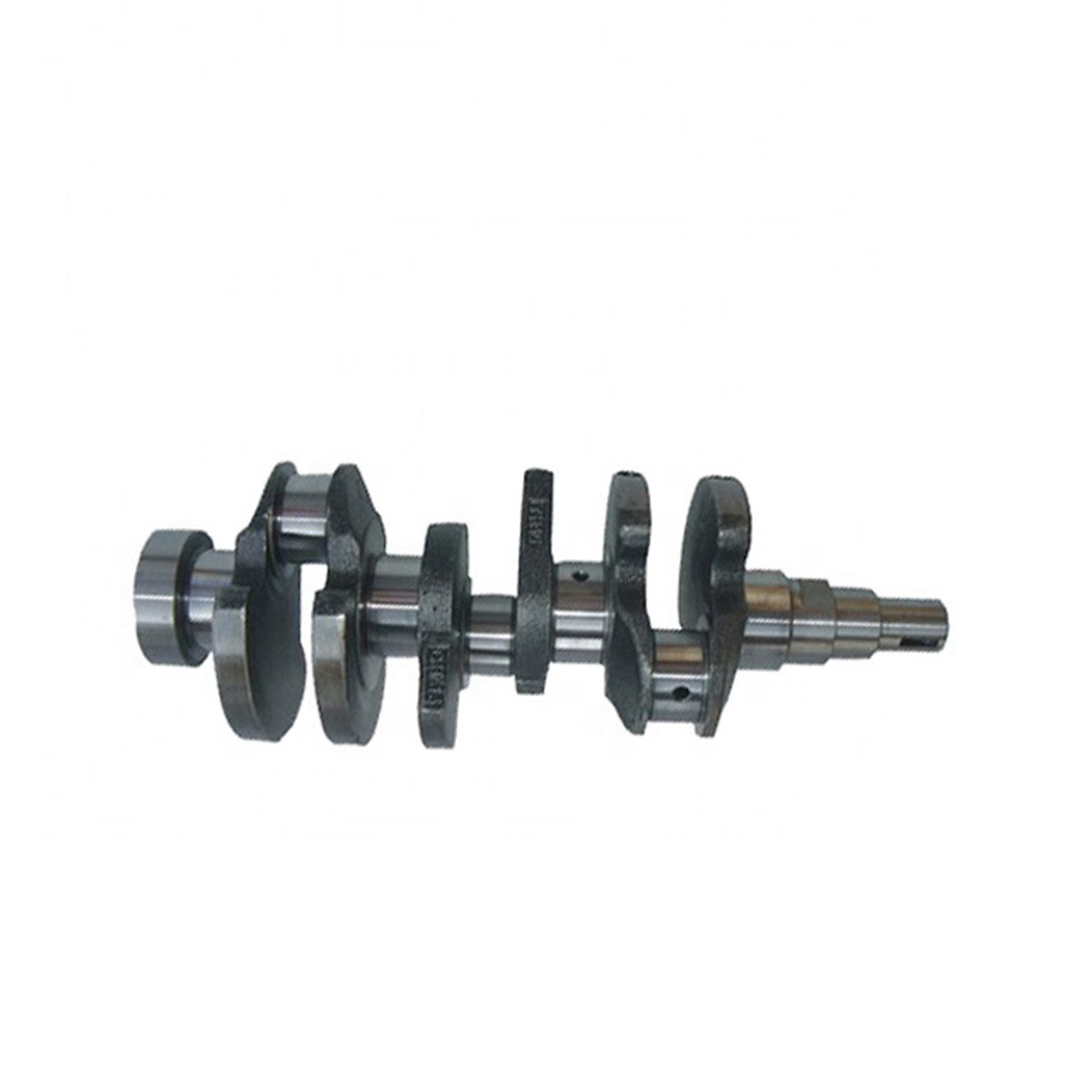

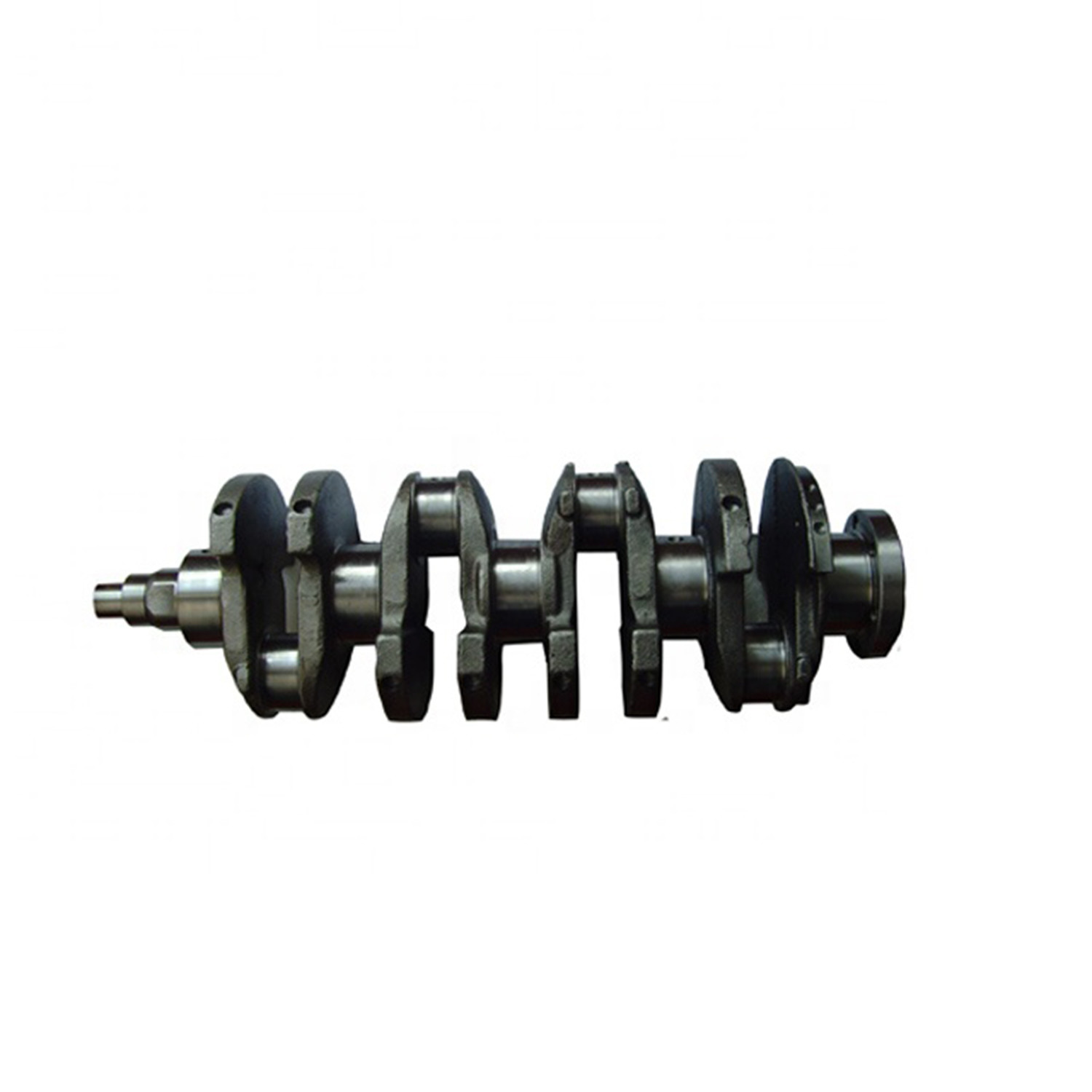

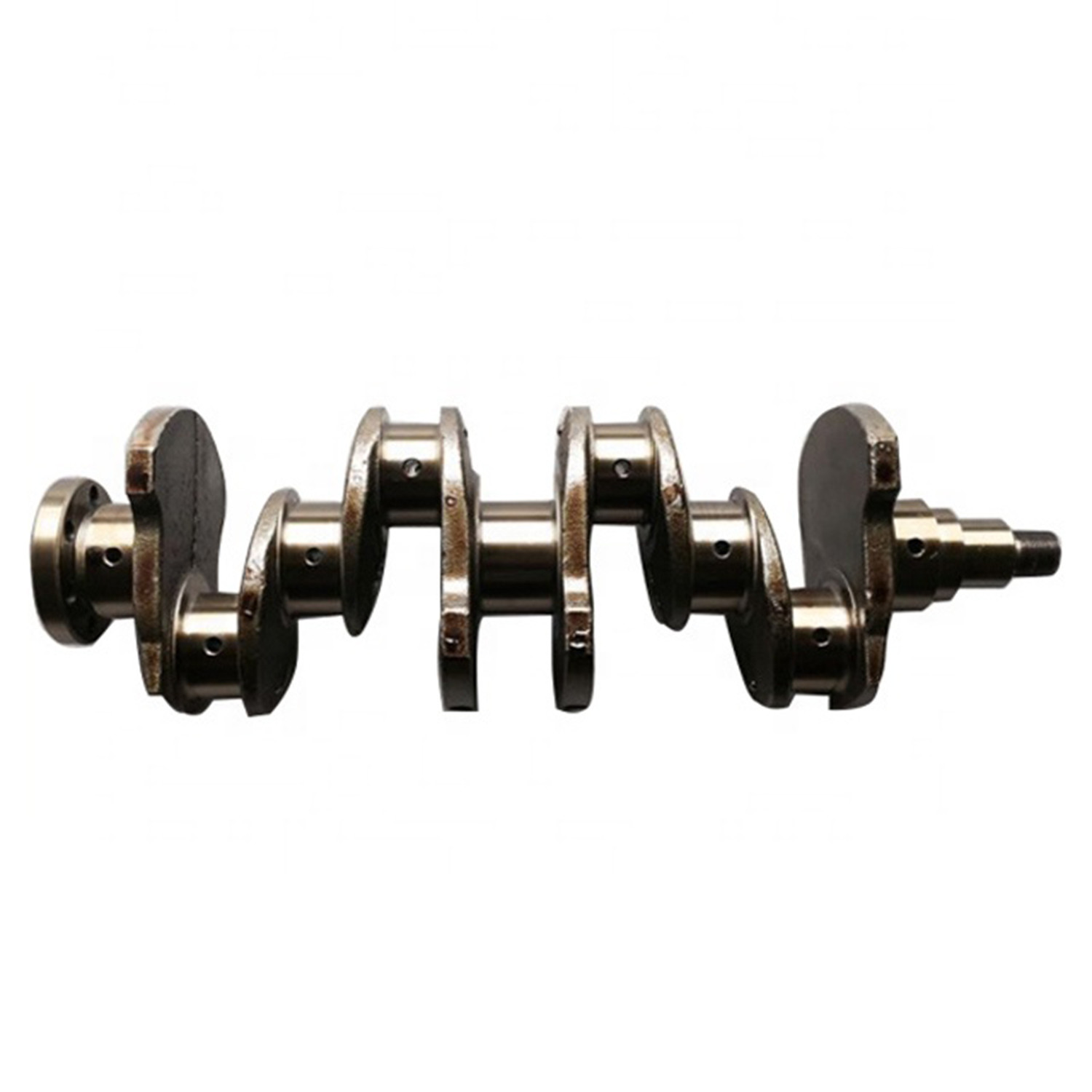

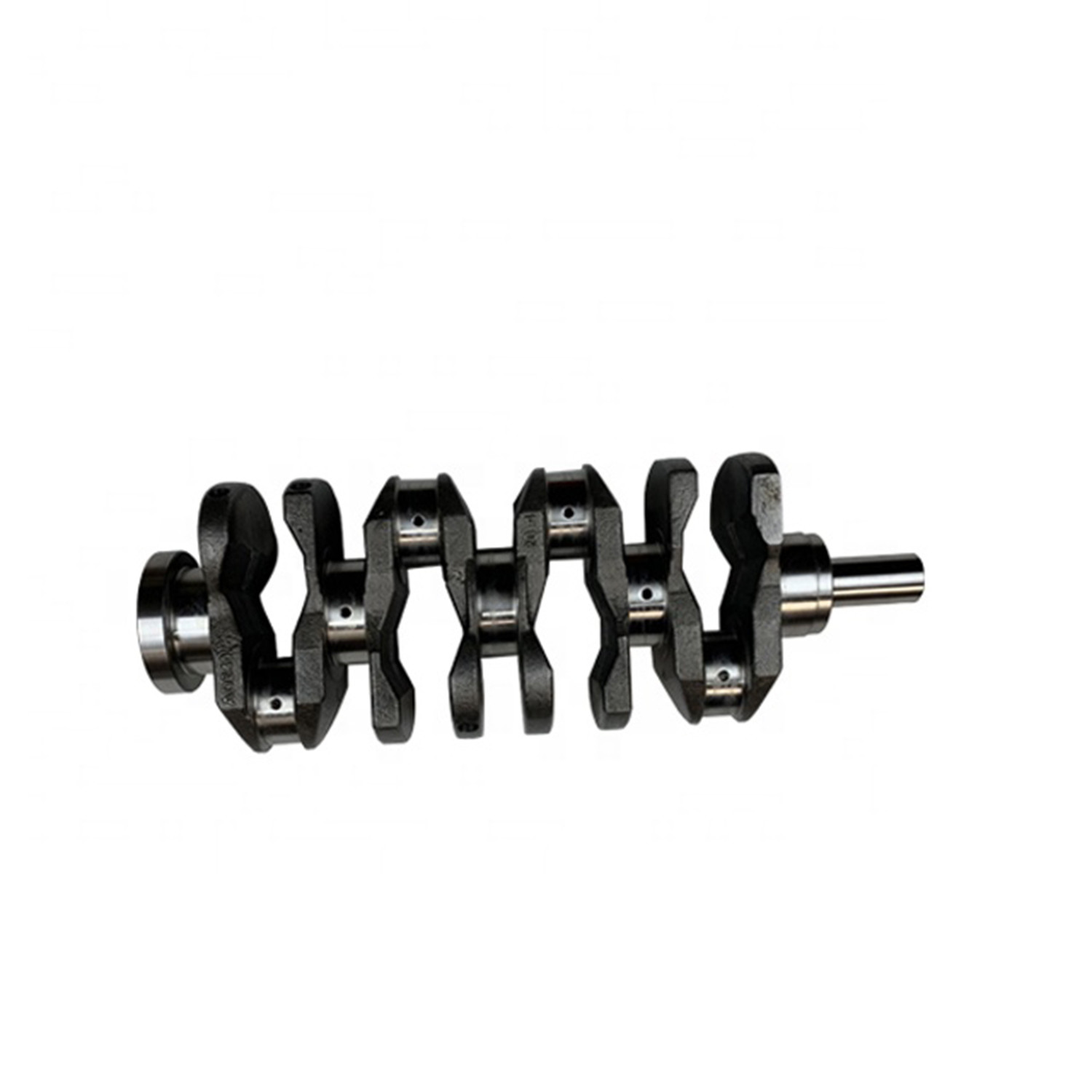

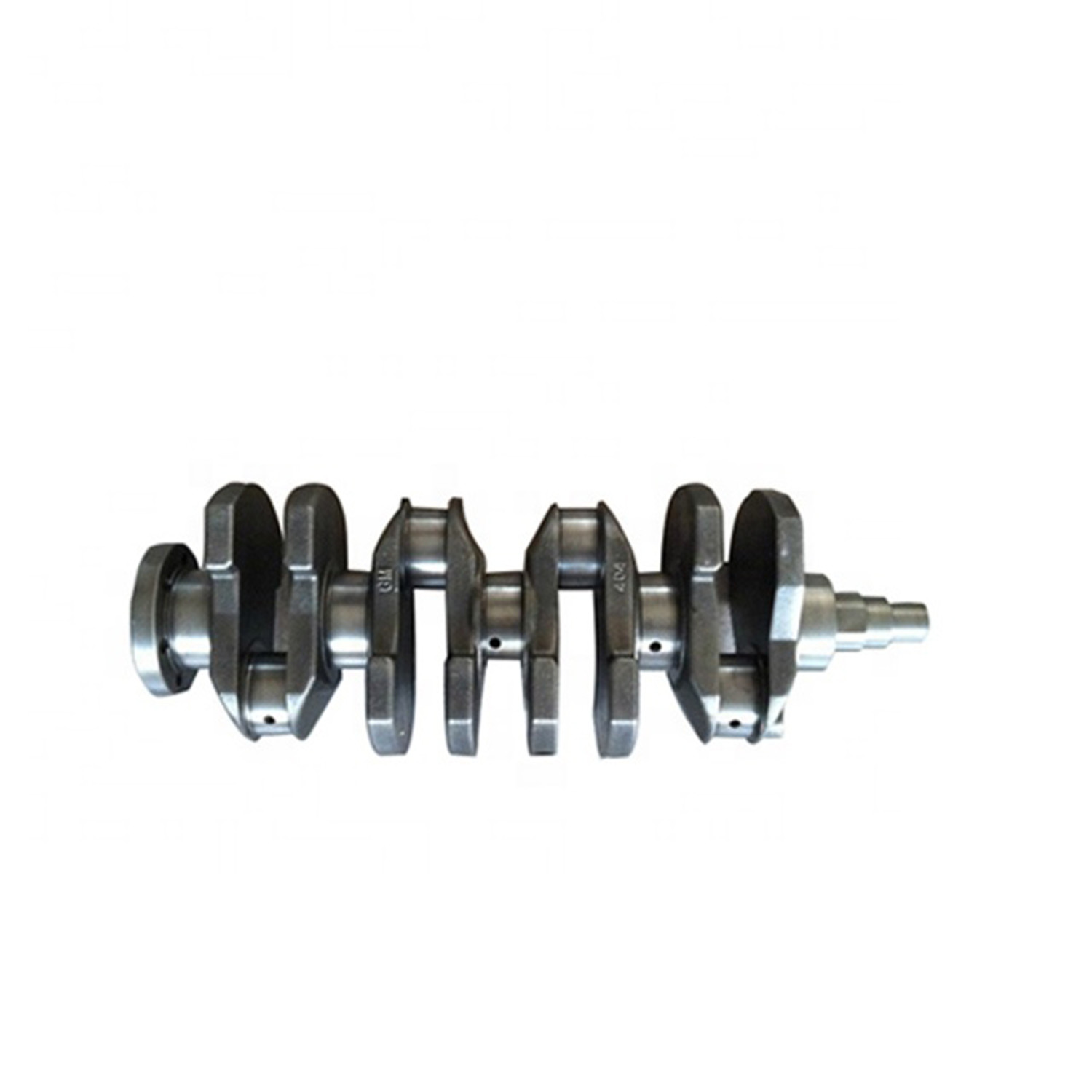

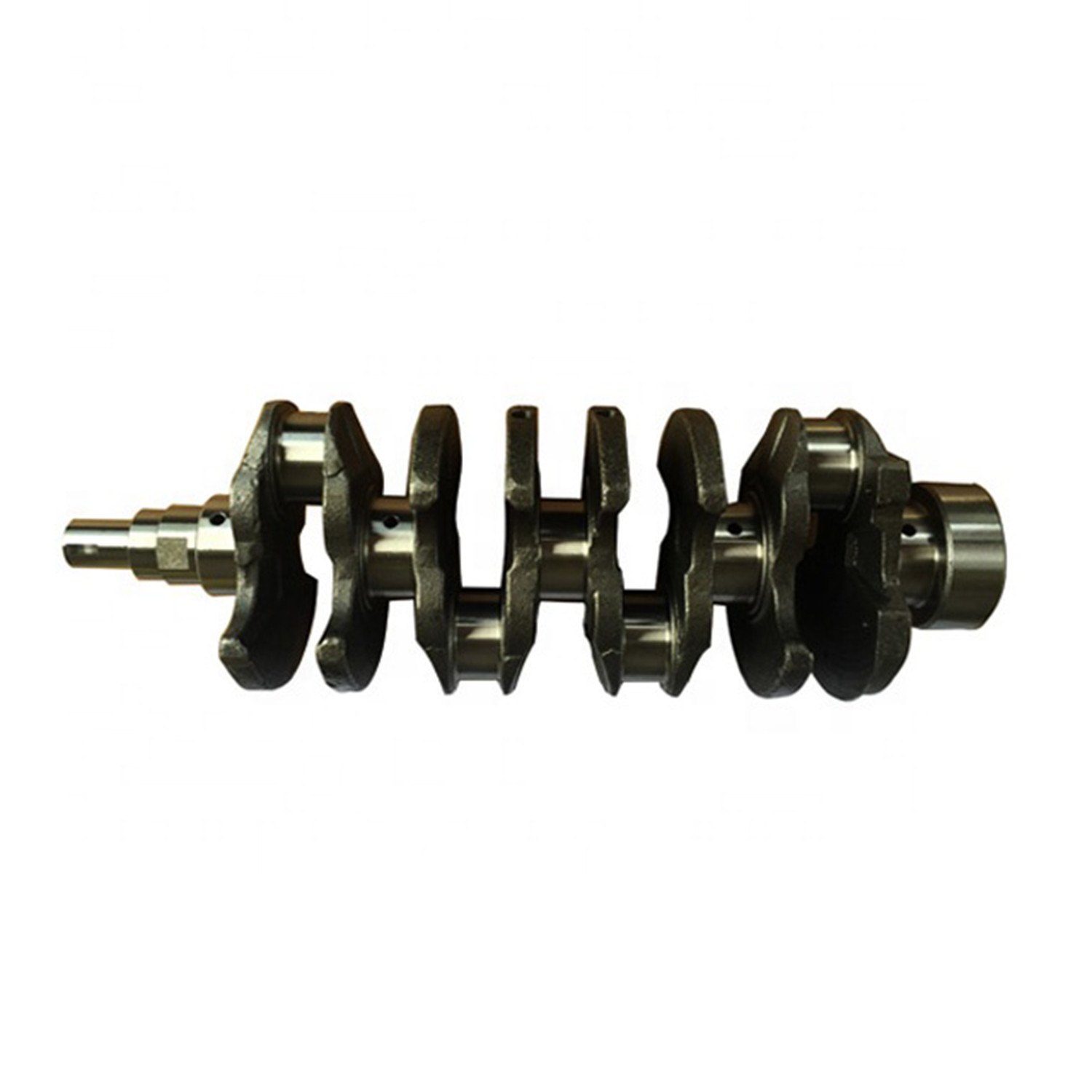

Diesel Engine Crankshaft OEM Service Cast Iron Auto Crankshaft 12200-AD200 YD25
1. Each piece crankshaft with precise grinding and fine leaming is designed to be well coordinated with piston and other parts.
2. Our factory control system takes dynamic balancing for each piece of crankshaft to avoid engine vibration
3. Our crankshaft is designed with precise specifications to improve crankshaft fatigue strength.
4. Our crankshaft should pass the fatigue testing, hardness testing ect. before shipment to guarantee the quality.
Crankshaft RF8 Detail:
| Specification | |
| Part Name | Crankshaft For Nissan Pathfinder Navara YD25 |
| Manufacturing Process | Casting |
| Number Of Cylinders | 4 |
| Total Length | 516.5mm |
| Main Bearing | 62.74mm |
| Rod Diameter | 51.74mm |
| Casting Specification | ||||
| Material | QT500-7 | QT700-3 | QT750-5 | |
| Hardness | Normal:HRC22-28 High frequency quenching:HRC46-56 Ion nitridation:HV450-550 | |||
| Characteristic | ||||
|
chemical composition |
C | 3.6-3.8% | 3.08-3.% | 3.5-3.8% |
| Si | 2.5-5.9% | 2.5-3.2 | 2.2-2.6% | |
| Mn | 0.4-0.6% | 0.5-0.6 | 0.2-0.35% | |
| P | ≤0.08% | ≤0.052% | ≤0.06% | |
| S | ≤0.025% | ≤0.022% | ≤0.05% | |
|
Mechanical behavior |
tensile strength | ≥500MPa | ≥700MPa | ≥750Mpa |
| Elongation | ≥7% | ≥3% | ≥5% | |
| Hardness | 170-230HB | 225-305HB | 190-260HB | |
Main Vehicle Engine Model For NISSAN:
| Vehicles | OEM | Engine Model | Length |
| NISSAN | A12 | 452.5mm | |
| NISSAN | ED33 | 658mm | |
| NISSAN | FD35 | 658mm | |
| NISSAN | FD6 | 920mm | |
| NISSAN | FE6 | 917.5mm | |
| NISSAN | FE6T | ||
| NISSAN | H20 | 535mm | |
| NISSAN | HA5 | 498.5mm | |
| NISSAN | KA20 | 534.5mm | |
| NISSAN | KA24 | ||
| NISSAN | KR30 | 506mm | |
| NISSAN | NA20 | ||
| NISSAN | ND6 | 1021.5mm | |
| NISSAN | 12200-95008 | NE6 | 1021.5mm |
| NISSAN | NE6T | ||
| NISSAN | PD6 | 1022.5mm | |
| NISSAN | PD6 | 1180mm | |
| NISSAN | PE6 | ||
| NISSAN | PE6T | ||
| NISSAN | PE6-TK20 | 1180mm | |
| NISSAN | PF6 | ||
| NISSAN | RD8 | 1023mm | |
| NISSAN | RE10 | ||
| NISSAN | RE8 | 1023mm | |
| NISSAN | RE8-2 | ||
| NISSAN | RF10 | ||
| NISSAN | RF10(NUT) | ||
| NISSAN | RG8 | ||
| NISSAN | RH10 | ||
| NISSAN | RH8 | ||
| NISSAN | SD22 | 581mm | |
| NISSAN | SD23 | 581mm | |
| NISSAN | SD33 | ||
| NISSAN | TD27 | 551mm | |
| NISSAN | VG30 | 504mm | |
| NISSAN | Z24 | 533mm |
