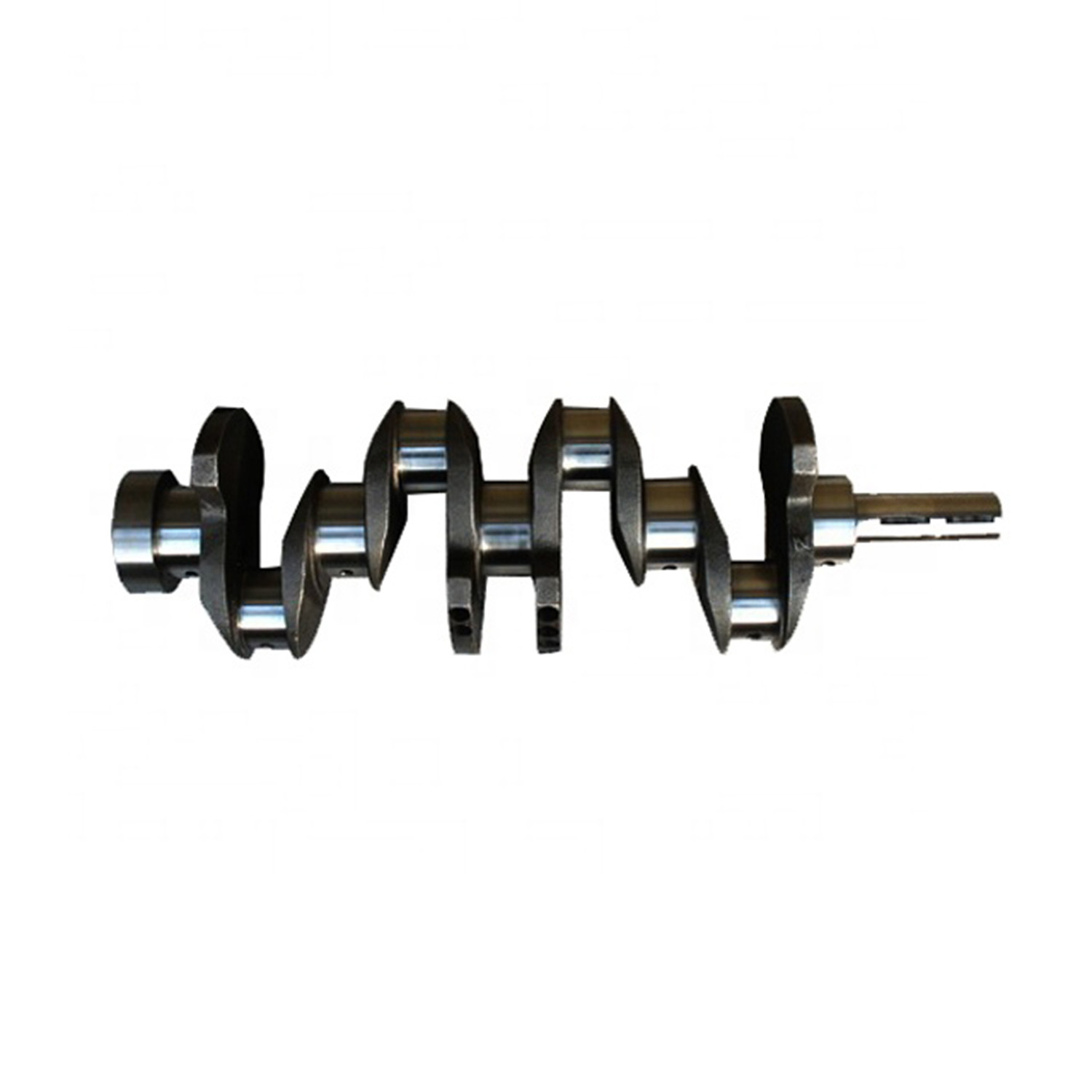

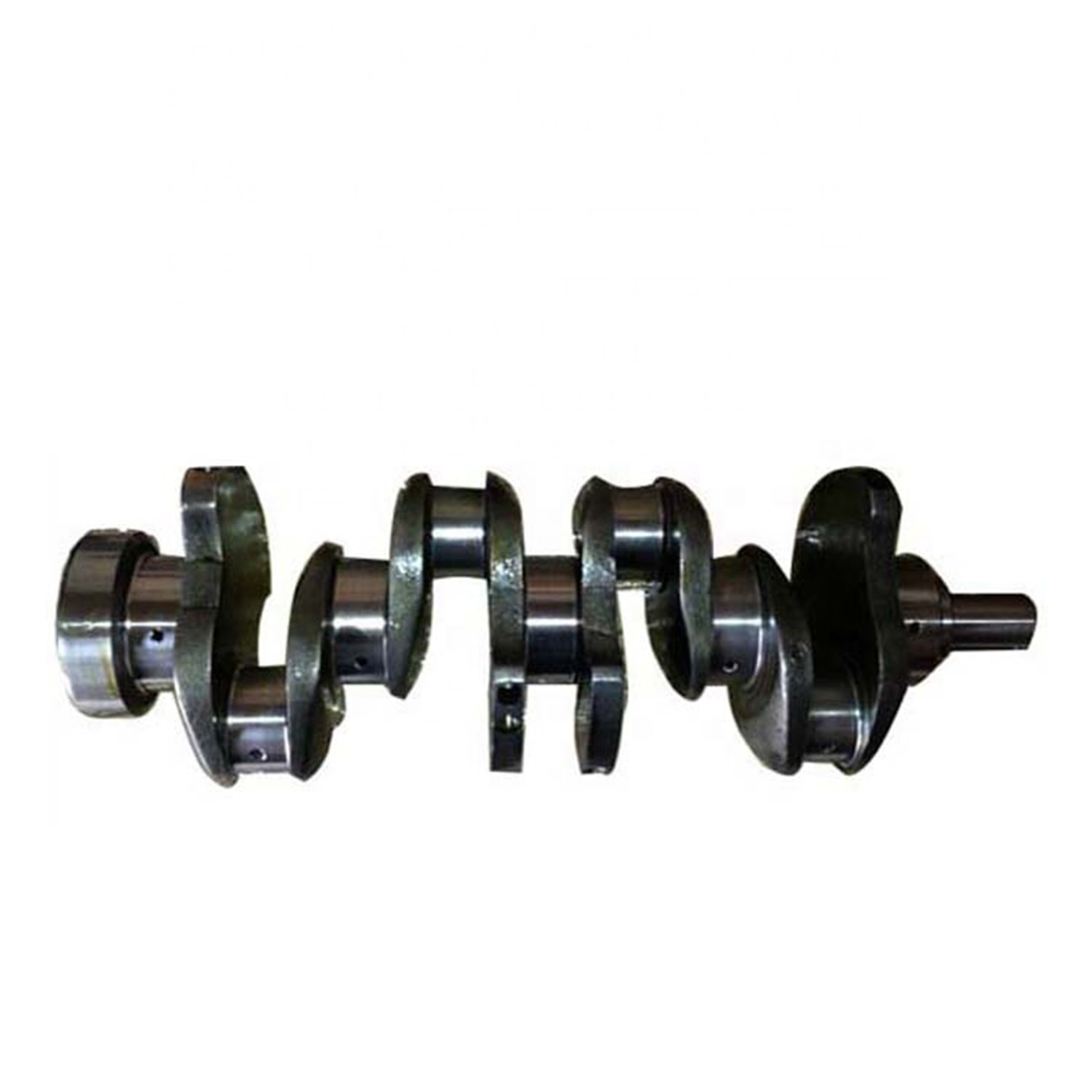

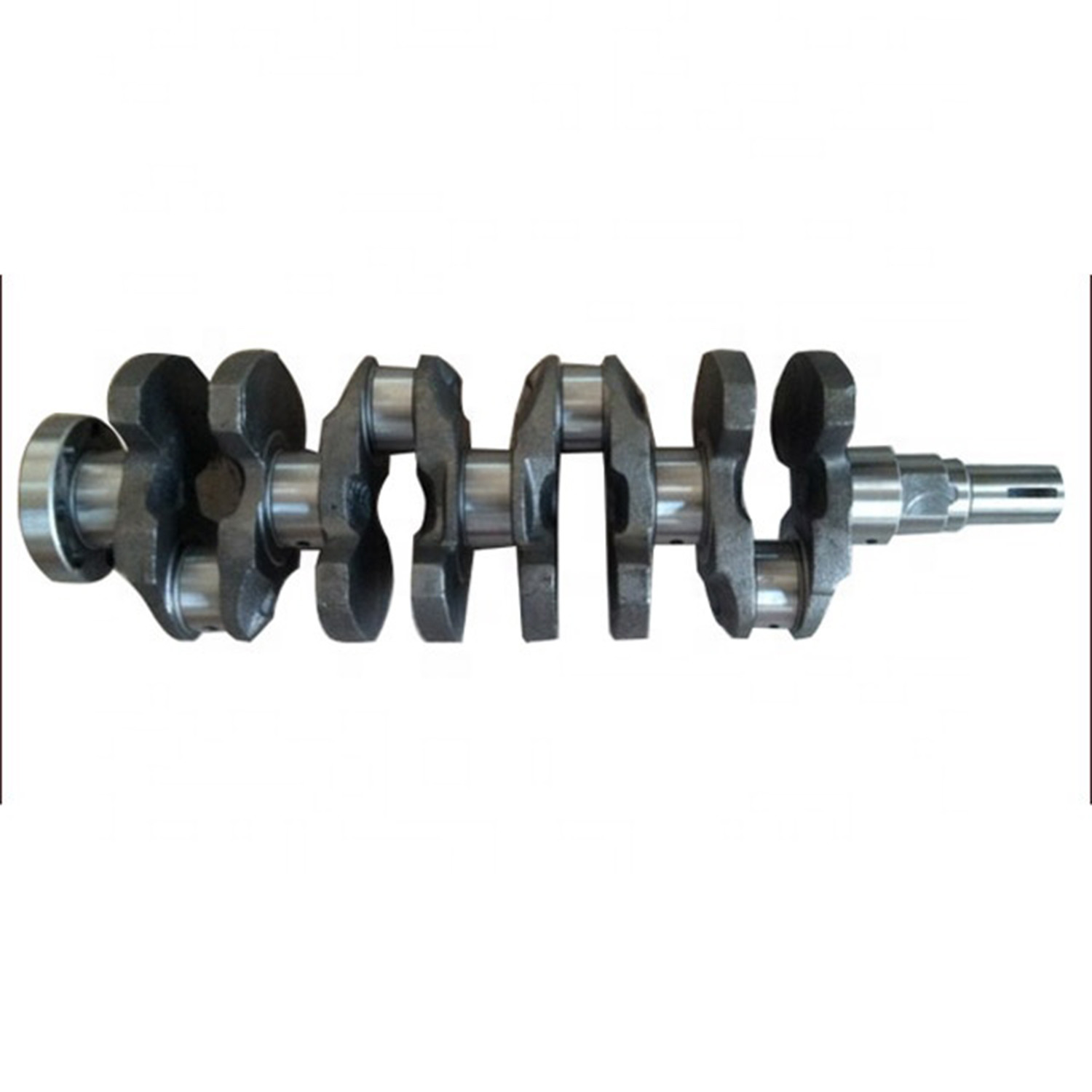

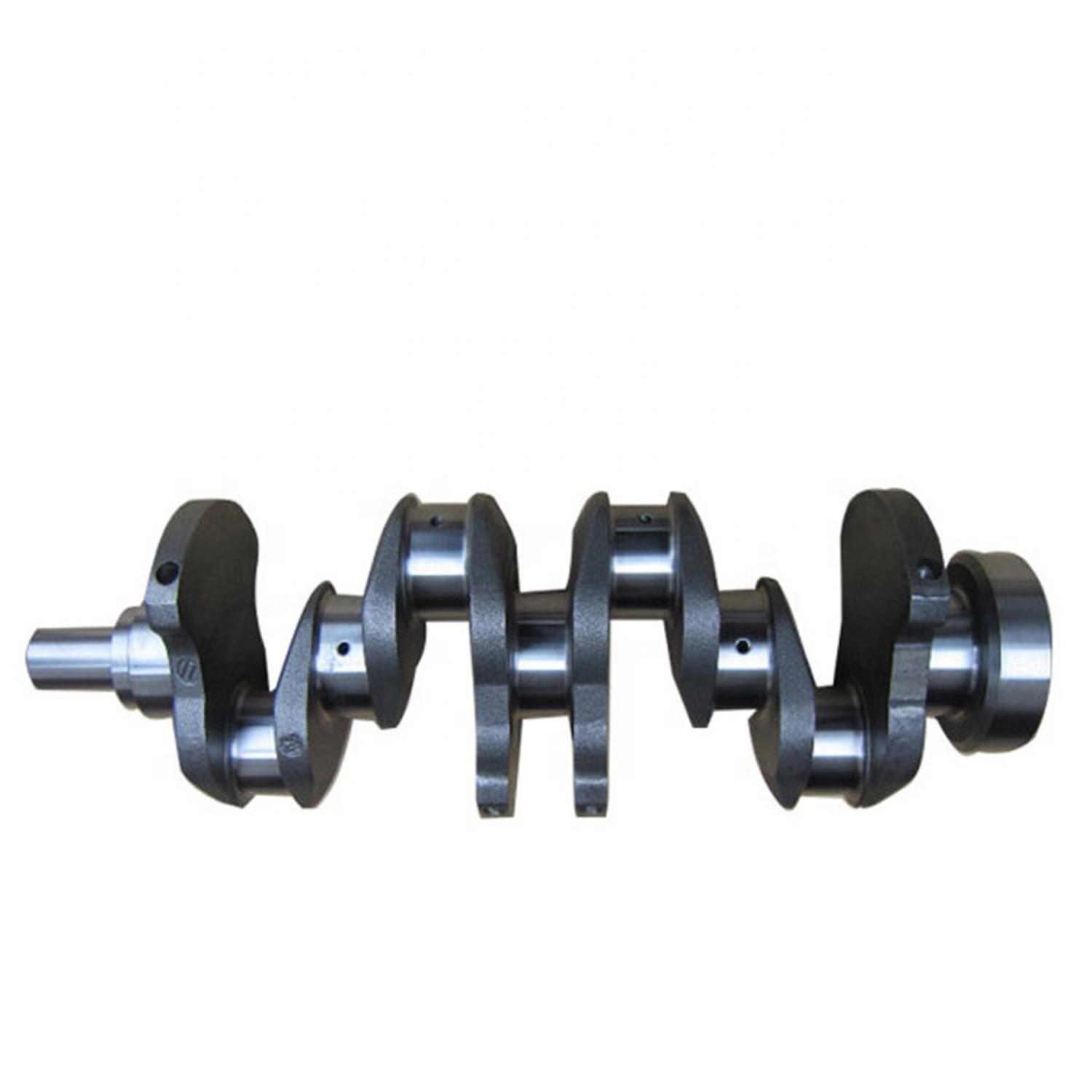

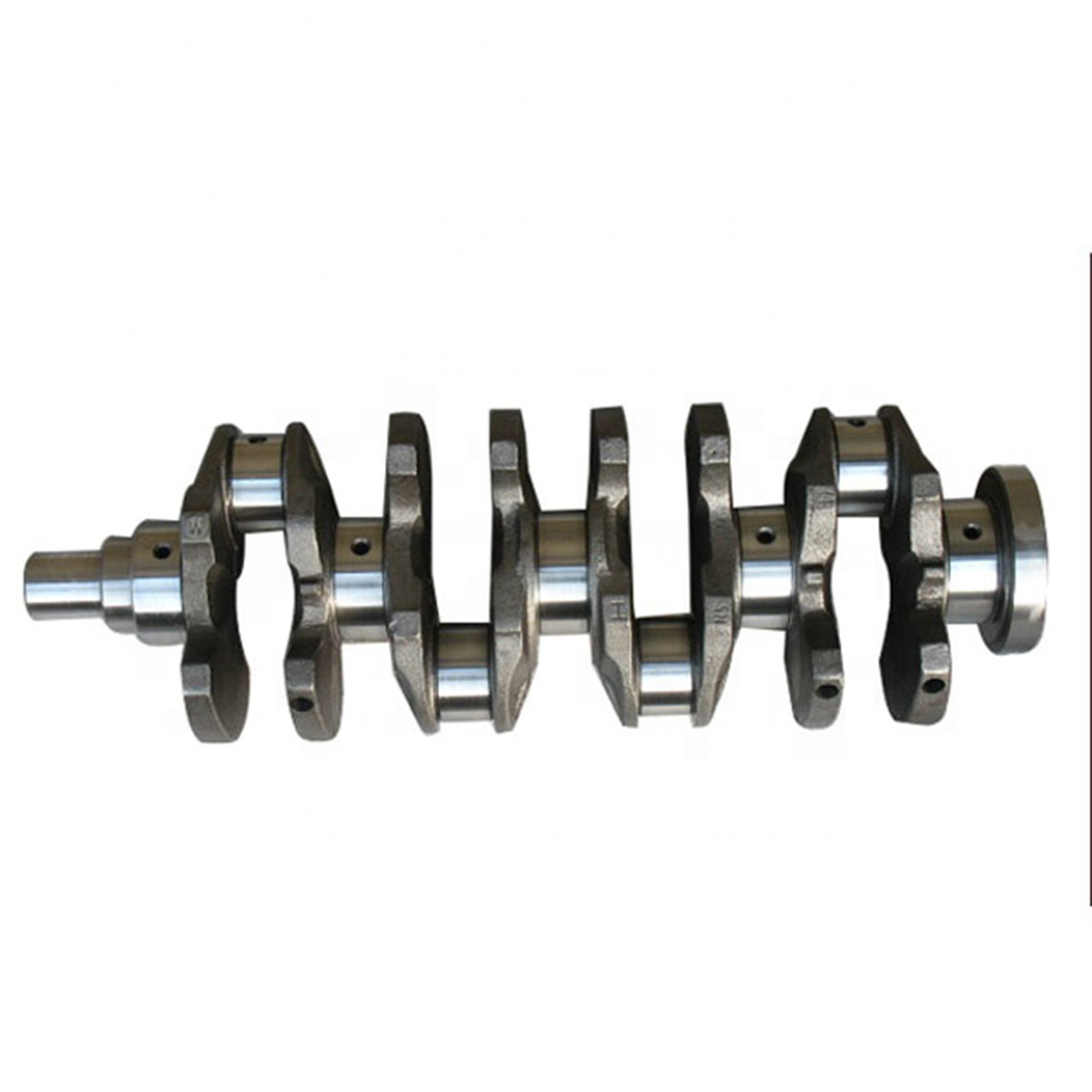

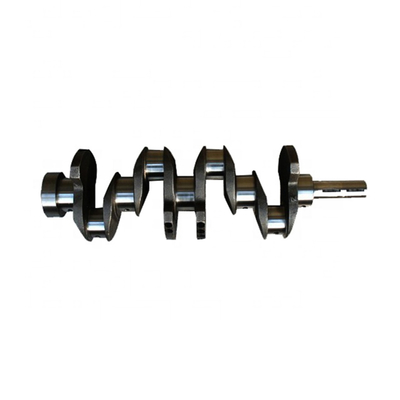

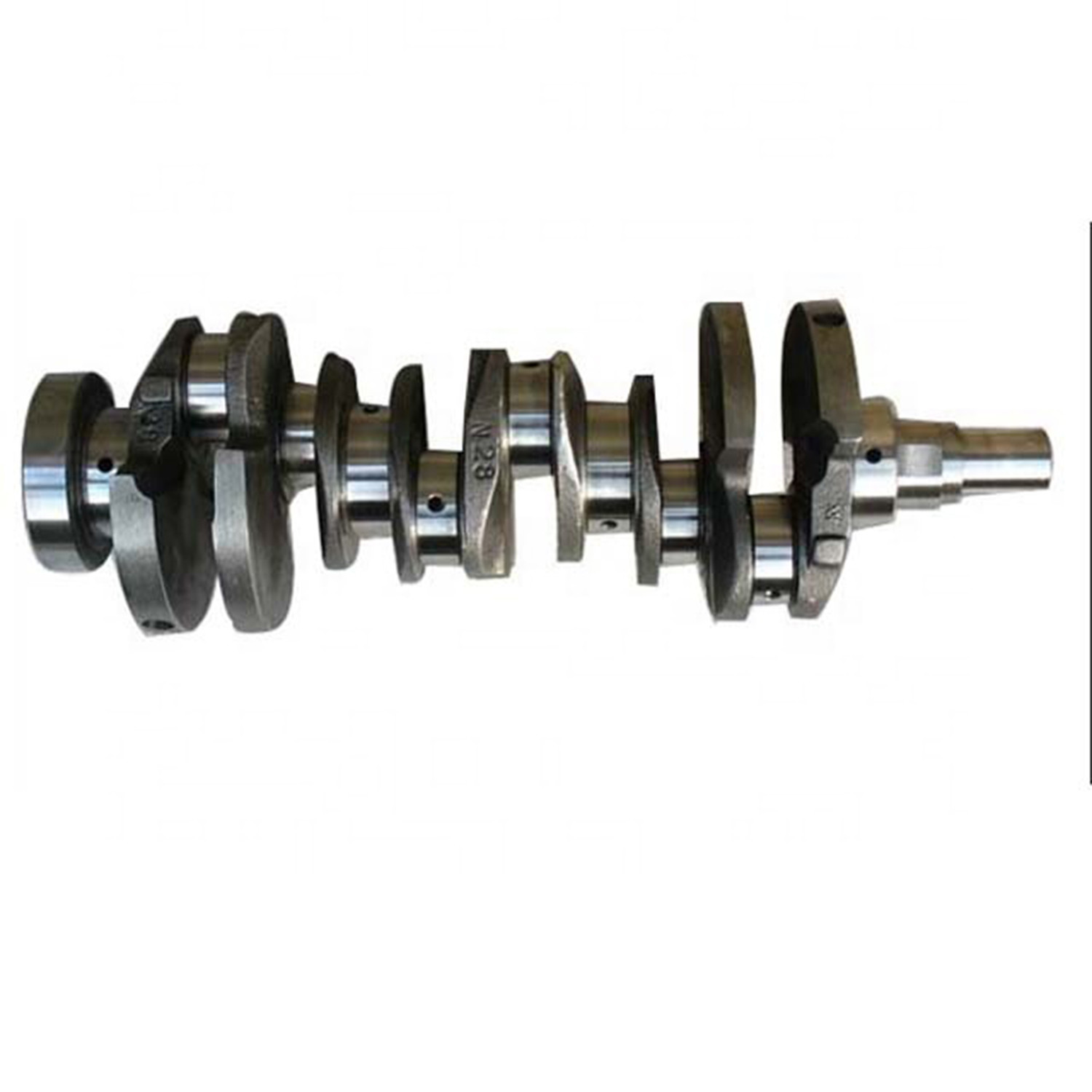

Diesel Engine Crankshaft OEM Service Cast Iron Auto Crankshaft 8-94127-797-1 4JA1
1. Each piece crankshaft with precise grinding and fine leaming is designed to be well coordinated with piston and other parts.
2. Our factory control system takes dynamic balancing for each piece of crankshaft to avoid engine vibration
3. Our crankshaft is designed with precise specifications to improve crankshaft fatigue strength.
4. Our crankshaft should pass the fatigue testing, hardness testing ect. before shipment to guarantee the quality.
| Specification | |
| Part Name | crankshaft For ISUZU |
| Part Number | 4JA1 |
| Size | Standard Size |
| Color | Same as photo |
| Manufacturing Process | Casting |
| Material | Iron |
| Casting Specification | ||||
| Material | QT500-7 | QT700-3 | QT750-5 | |
| Hardness | Normal:HRC22-28 High frequency quenching:HRC46-56 Ion nitridation:HV450-550 | |||
| Characteristic | ||||
|
chemical composition |
C | 3.6-3.8% | 3.08-3.% | 3.5-3.8% |
| Si | 2.5-5.9% | 2.5-3.2 | 2.2-2.6% | |
| Mn | 0.4-0.6% | 0.5-0.6 | 0.2-0.35% | |
| P | ≤0.08% | ≤0.052% | ≤0.06% | |
| S | ≤0.025% | ≤0.022% | ≤0.05% | |
|
Mechanical behavior |
tensile strength | ≥500MPa | ≥700MPa | ≥750Mpa |
| Elongation | ≥7% | ≥3% | ≥5% | |
| Hardness | 170-230HB | 225-305HB | 190-260HB | |
Main Vehicle Engine Model For NISSAN:
| Vehicles | OEM | Engine Model | Length |
| NISSAN | A12 | 452.5mm | |
| NISSAN | ED33 | 658mm | |
| NISSAN | FD35 | 658mm | |
| NISSAN | FD6 | 920mm | |
| NISSAN | FE6 | 917.5mm | |
| NISSAN | FE6T | ||
| NISSAN | H20 | 535mm | |
| NISSAN | HA5 | 498.5mm | |
| NISSAN | KA20 | 534.5mm | |
| NISSAN | KA24 | ||
| NISSAN | KR30 | 506mm | |
| NISSAN | NA20 | ||
| NISSAN | ND6 | 1021.5mm | |
| NISSAN | 12200-95008 | NE6 | 1021.5mm |
| NISSAN | NE6T | ||
| NISSAN | PD6 | 1022.5mm | |
| NISSAN | PD6 | 1180mm | |
| NISSAN | PE6 | ||
| NISSAN | PE6T | ||
| NISSAN | PE6-TK20 | 1180mm | |
| NISSAN | PF6 | ||
| NISSAN | RD8 | 1023mm | |
| NISSAN | RE10 | ||
| NISSAN | RE8 | 1023mm | |
| NISSAN | RE8-2 | ||
| NISSAN | RF10 | ||
| NISSAN | RF10(NUT) | ||
| NISSAN | RG8 | ||
| NISSAN | RH10 | ||
| NISSAN | RH8 | ||
| NISSAN | SD22 | 581mm | |
| NISSAN | SD23 | 581mm | |
| NISSAN | SD33 | ||
| NISSAN | TD27 | 551mm | |
| NISSAN | VG30 | 504mm | |
| NISSAN | Z24 | 533mm |
Advantage
1. We have sixteen years experience in exporting to overseas market with full range of products,fast delivery,competitive price and guaranteed service .
2. We supply multi-faceted service: OEM service,customer design service and buyer label service.
3. We guarantee that all merchandise we supply in good quality and under strict examination before shipped.
