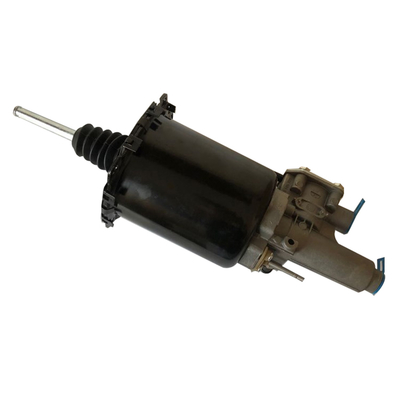

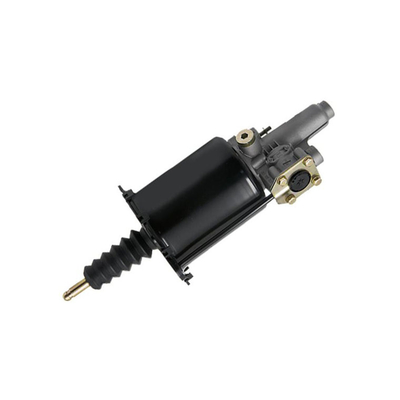

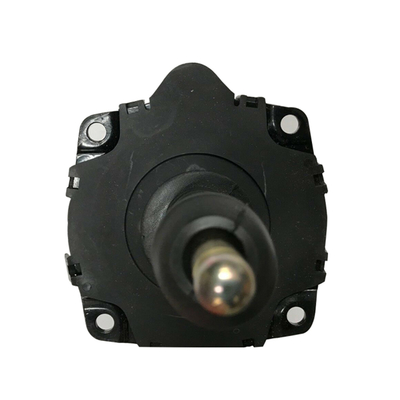

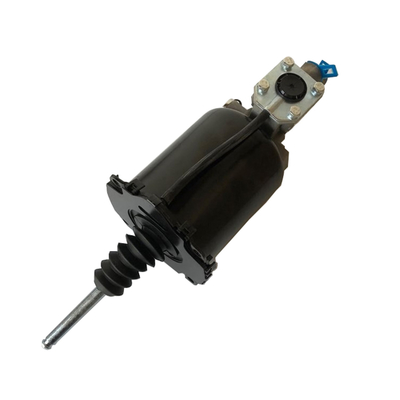

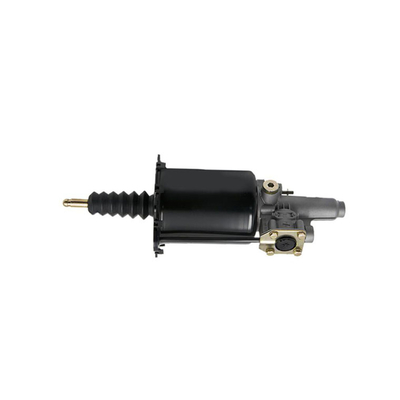

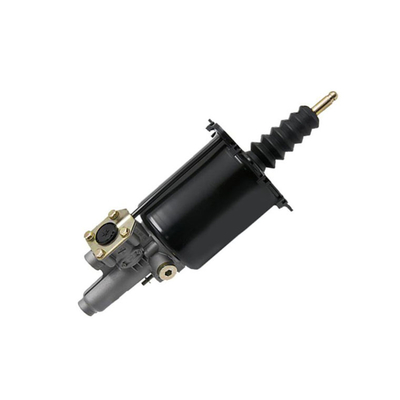

85mm Stroke 9700514240 Clutch Servo / Clutch Booster Assembly For MEN Truck Temperature range -40°C to +80°C
1. Clutch servo is an assembly used in automobiles in the clutch actuating mechanism. Our Clutch booster is designed to reduce manual effort needed to dis-engage the clutch whenever gear shift is required.
2. Our workers control every process in production strictly and improve quality in consistency.
3. By improving the process flow and standardize operation, we bring down our cost to supply customers good products with competitive price.
4. Full range of products for heavy duty truck,trailer,semi,bus and other commercial vehicle.
| OEM | Cylinder DIA | Material | Stroke | Air port | Hyd port |
| 9700514240 | Ø 102mm |
Steel, Aluminum, Nylon |
85mm | M16x1.5 | M14x1.5 |
Product Description
|
Technical Specification
|
OE specification
|
|
Distance between holes
|
130.0 mm
|
|
Length
|
391 mm
|
|
Max. operating pressure
|
10.0 bar
|
|
Oil inlet
|
Brake fluid SAE J 1703
|
|
Port Thread 1-4
|
M14 x 1.5 ( B )
|
|
Port Thread 32
|
Ø 8.0 mm
|
|
Port thread 11
|
M16 x 1.5 JED - 464
|
|
Port thread 31
|
Flap Exhaust
|
|
Push-rod thread
|
Ball Ø 12.0 mm
|
|
Stroke
|
85.0 mm
|
|
Temperature range
|
-40°C to +80°C
|
|
mounting
|
4x Ø 9.0 mm
|
|
Calculated Volume (dm³)
|
7.247
|
|
Size (mm x mm x mm)
|
395 x 139 x 132
|
|
Weight (kg)
|
2.5
|
|
Weight (lb)
|
5.5116
|
Quality guarantee
1) Quality Certification: ISO9001
2) Good Quality Assurance: 100% leakage before delivery
Features
1) Neutral packing or customized packing accepted
2) Competitive prices and timely delivery
3) Sample order accepted
4) OEM orders are welcome
| Vehicles | OEM |
| HINO | 642-03080 |
| HINO | 642-03502 |
| HINO | 642-03502 |
| HINO | 642-03505 |
| HINO | 642-03552 |
| HINO | 642-03803 |
| HINO | 642-09306 |
| HINO | HINO-70 635713.00 |
| HINO | SH48600 |
| ISUZU | 8-97014-566-1 |
| ISUZU | 8-97048-928-2 |
| MITSUBISHI | 642-10608 |
| MITSUBISHI | MC-113070 |
| MITSUBISHI | MD9116-1100 |
| NISSAN | UD-90 M14*1.5 M12*1.5 |
| SCANNIA | 622199 |
| SCANNIA | 629683 |
| SCANNIA | 970 051 107 0 |
| TOYOTA | 44610-60560 |
| Vol-vo | 626392 |
| Vol-vo | 626639 |
| BENZ | 970 051 128 0 |
| BENZ | 970 051 131 0 |
| BENZ | 970 051 405 0 |
| BENZ | 970 051 431 0 |
| BENZ | VG3361 |
| 1.31800.490.0(105MM LONG) | |
| 1337966/624199AM | |
| 417000-7D000 | |
| 810-05005 | |
| 970051 4350 |
Advantage
1. We have sixteen years experience in exporting to overseas market with full range of products,fast delivery,competitive price and guaranteed service .
2. We supply multi-faceted service: OEM service,customer design service and buyer label service.
3. We guarantee that all merchandise we supply in good quality and under strict examination before shipped.
